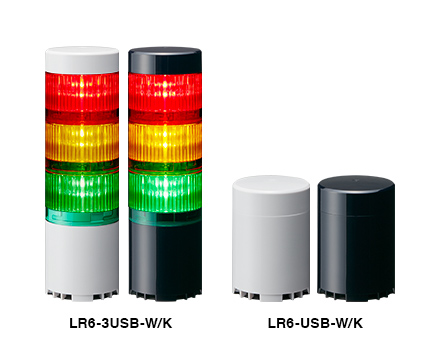

USB Signal Tower
LR6-USB
USB Signal Tower
Directly Triggered and Powered via USB interface. Compatible with Windows(R) and Linux.

Product Features


  • Controlled by PC.

  • Custom programming made easy with our free software library (.DLL).

  • Open architecture makes it possible to control the device with other operating systems such as Linux.

  • Supports HID class. No exclusive drivers necessary.

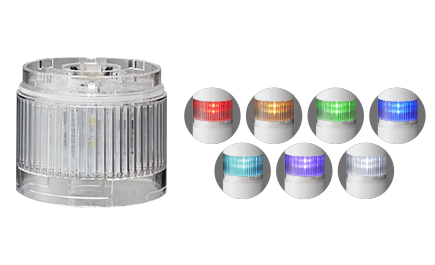

  • Supports solid color, clear-globe, and 7-in-1 multi-color LED units.

  • IP65 protection rating - High water and dust protection.



  • LR6-USB


Model Specifications

OPERATING VOLTAGES - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard)
PROTOCOLS - USB 2.0
- Software Library (DLL) compatible with Windows® 7, Windows® 8,
  Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10
- Compatible with open-source software operating systems such as Linux
FUNCTIONS - LED units and Buzzer is controlled by a PC via USB interface.
CONFORMITY STANDARDS - UL
- FCC
- EMC Directive
- RoHS
- KC
PROTECTION RATINGS - IP65 (IEC 60529), except when pole or wall mounted.
- NEMA Type 4X, 13
