· PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.
· Double Insulation: For enhanced durability and safety in the work environment.
· Installation: Direct mount with a single hole.
· Interchangeable LED module: No re-wiring even after installation.
· Main Body: Superior impact and heat resistant ABS resin.
· Lens: Superior weather resistant and light translucent AS resin.

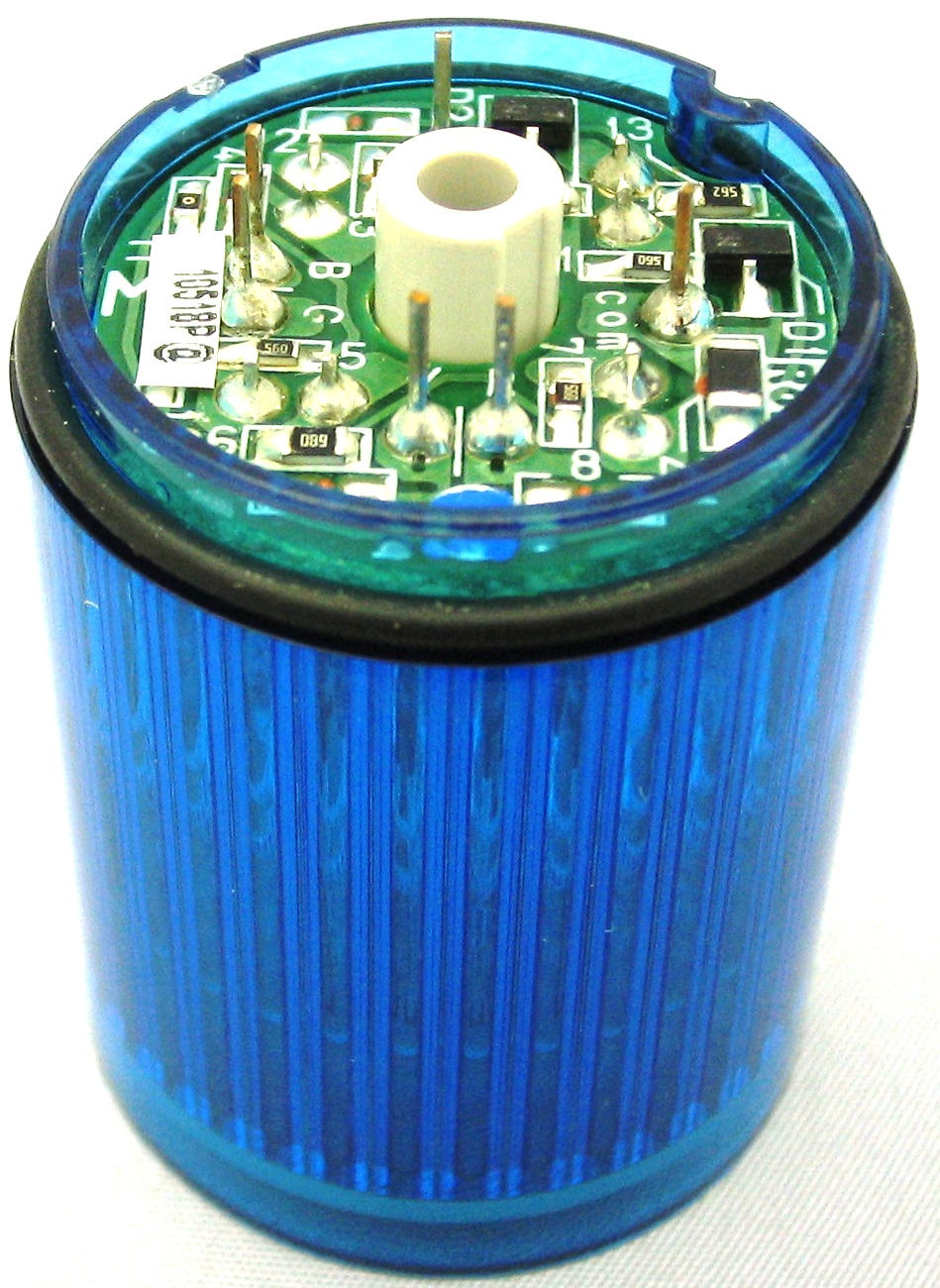

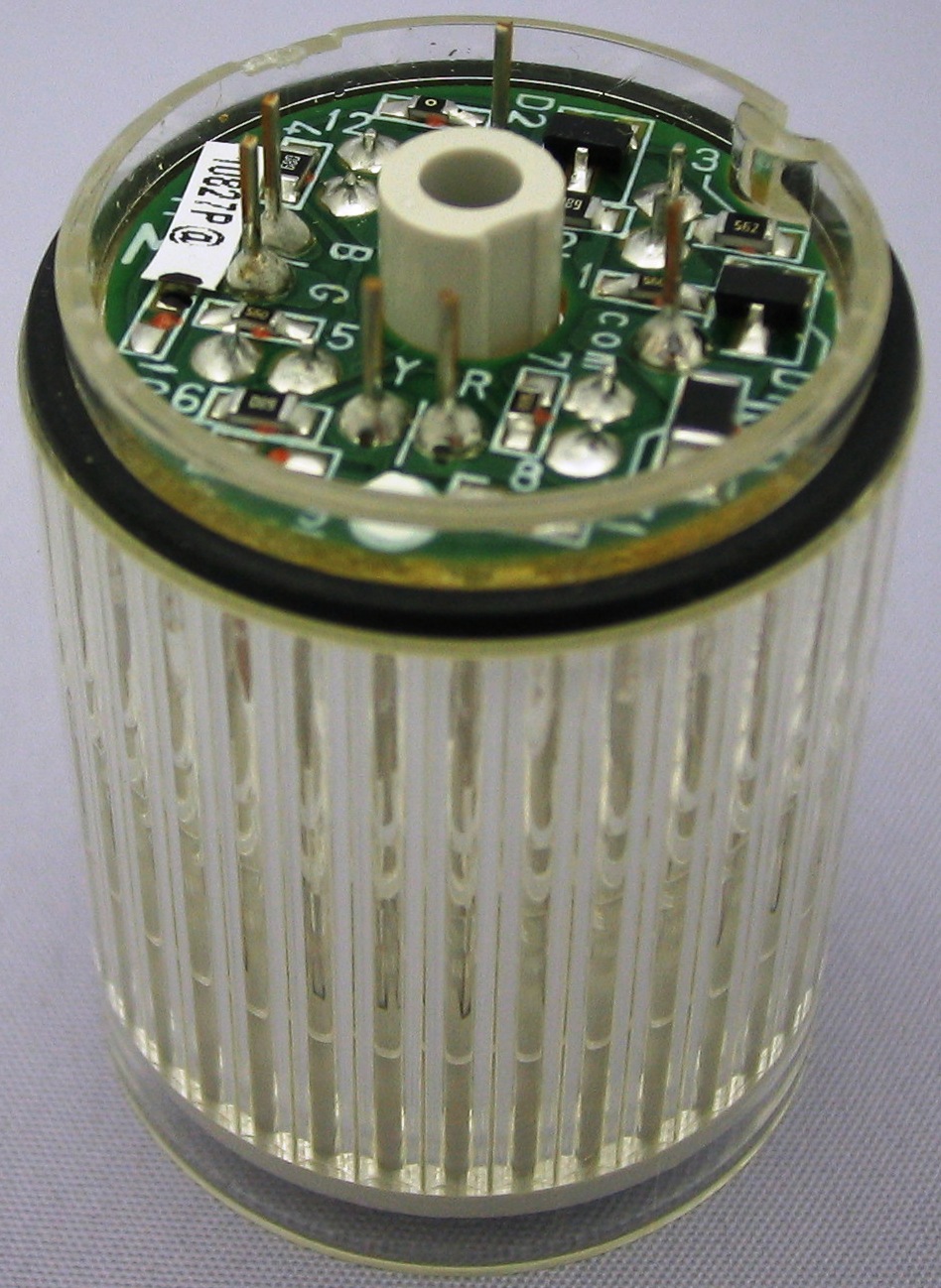

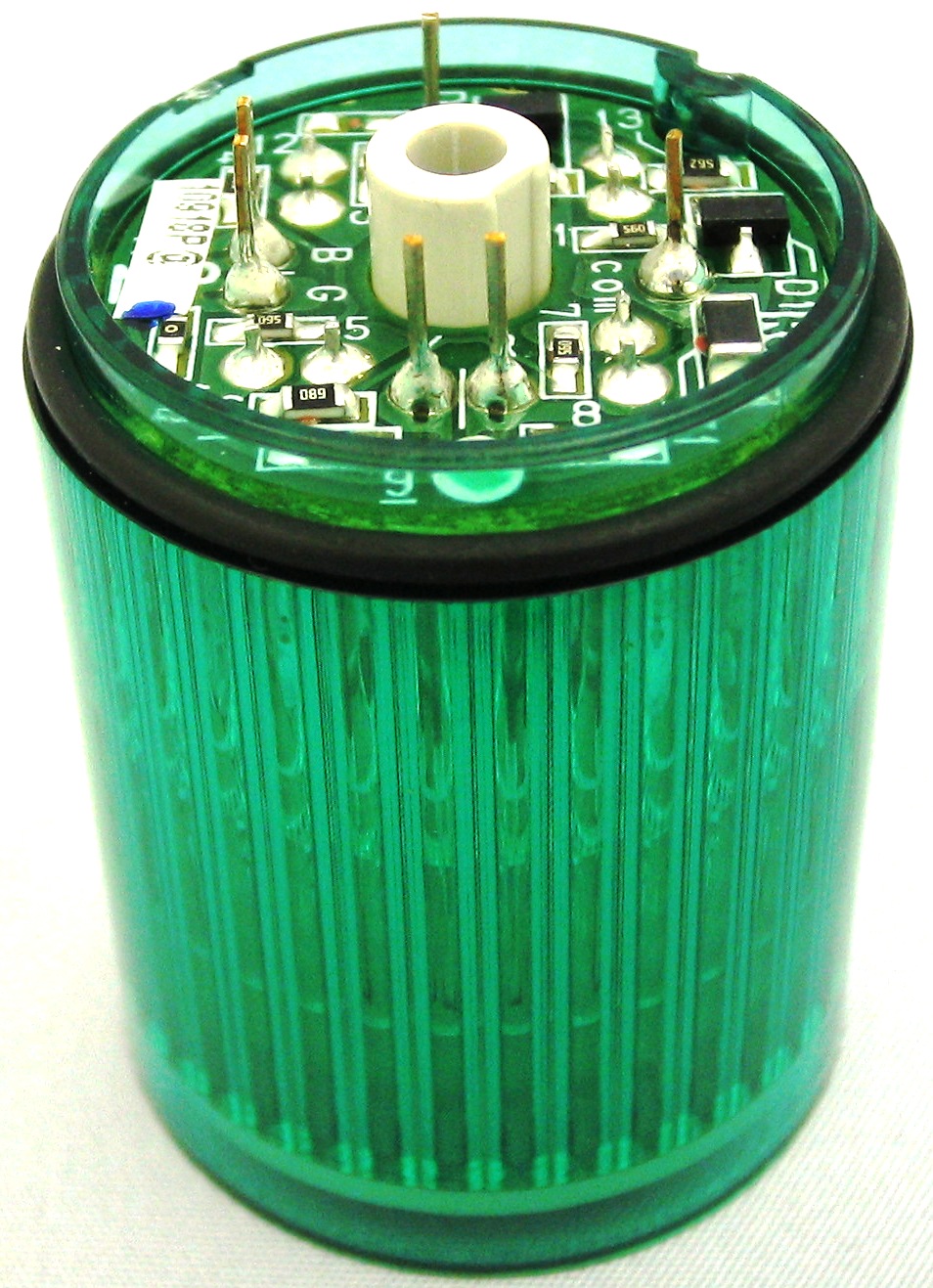

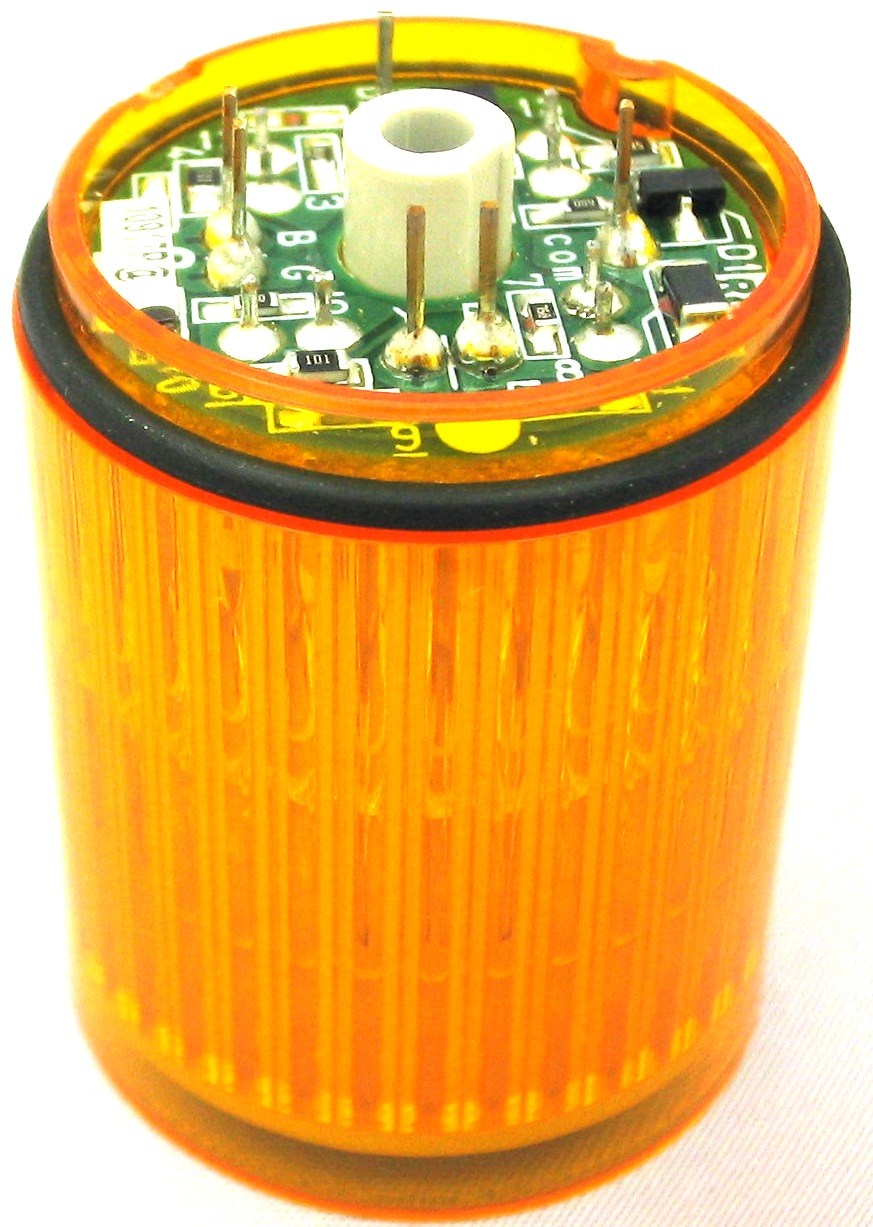

· Available Colors: Red, Amber, Green, Blue, Clear/White.
|DIMENSIONS||- 30mm diameter|
|OPERATING VOLTAGES||- 24V AC/DC|
|FUNCTIONS||- Continuous Only
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for DC24V
- Direct voltage control
|MOUNTING||- Direct mount only: includes M22 mounting nut and sealing gasket|
|BODY STYLE||- Pre-assembled, pre-wired
- Interchangeable and stackable module after purchase
|BODY COLOR||- Body: Silver|
|STACKABLE TIERS||- Up to 5 modules can be stacked|

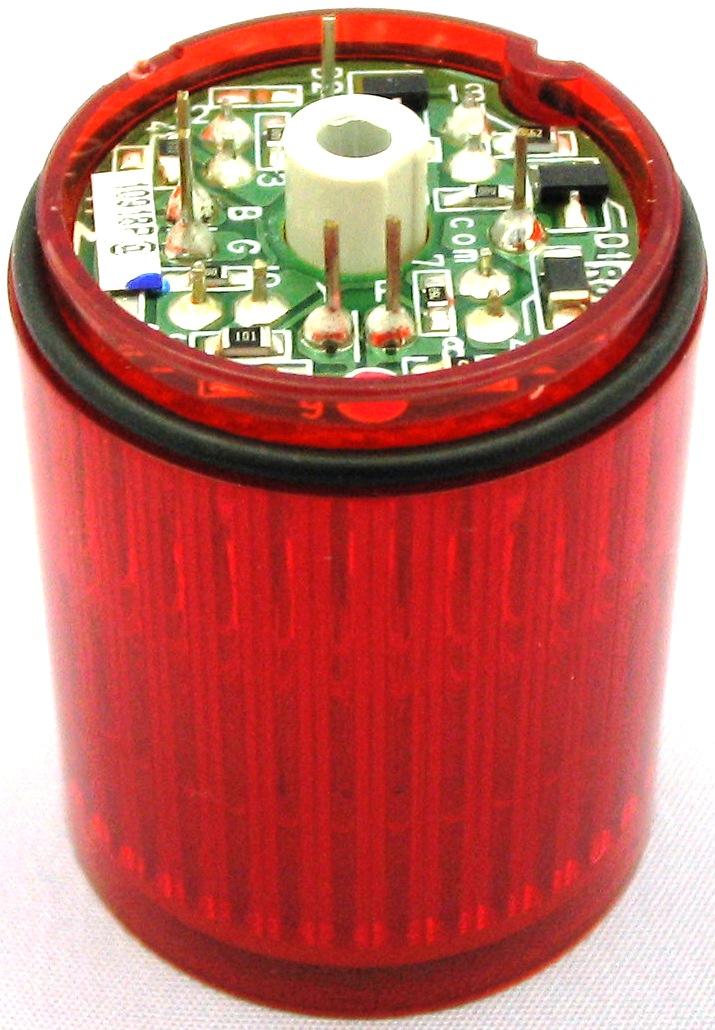

|MODULE COLORS||- Red
|CONFORMITY STANDARDS||- CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
|PROTECTION RATING||- IP 65|
