This product has a limited distribution area. Please ask our subsidiaries

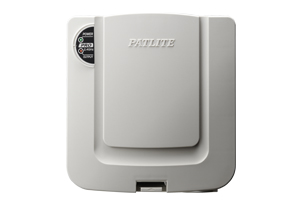

Wireless Data Acquisition System Receiver
WDR-LE-Z2
Wireless Data Acquisition System Receiver
Connects to a host computer via a LAN or USB to enable wireless communication with WD-Z2 transmitters.

Product Features

The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.




Model Specifications

CONFORMITY STANDARDS - FCC
- NCC
- NBCT
- SDPPI
- SRRC
DIMENSIONS - H131.8 W125 D38.8mm
OPERATING VOLTAGES - Rated Voltage: DC24V (Non-polar)
- Operating voltage Range: DC21.6V to DC26.4V
PROTOCOLS - Description: Stationary Receiver
FUNCTIONS - Operating Temperature Range: —10℃ to 60℃ (No Condensation)
- Operating Humidity Range: 85% RH or less(No Condensation)
- Storage Temperature Range:—20℃ to 70℃(No Freezing)
- Installation: Upright Position(Indoor Only)
BODY STYLE - Mass: 160g
BODY COLOR - Body: Beige
