Wireless Data Acquisition System LE Transmitter

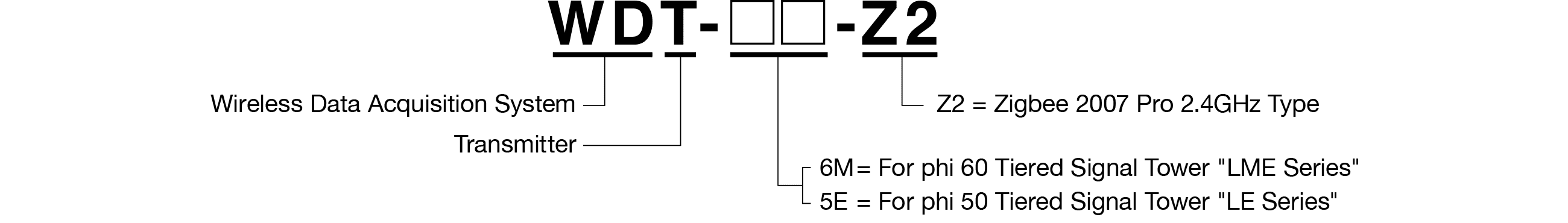

WDT-5E-Z2
Wireless Data Acquisition System LE Transmitter

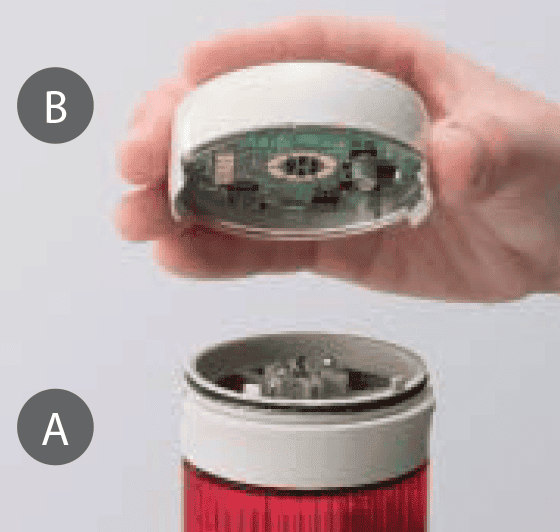

Transmitter attachment for the LE Signal Tower to enable wireless data transmission.

Product Features

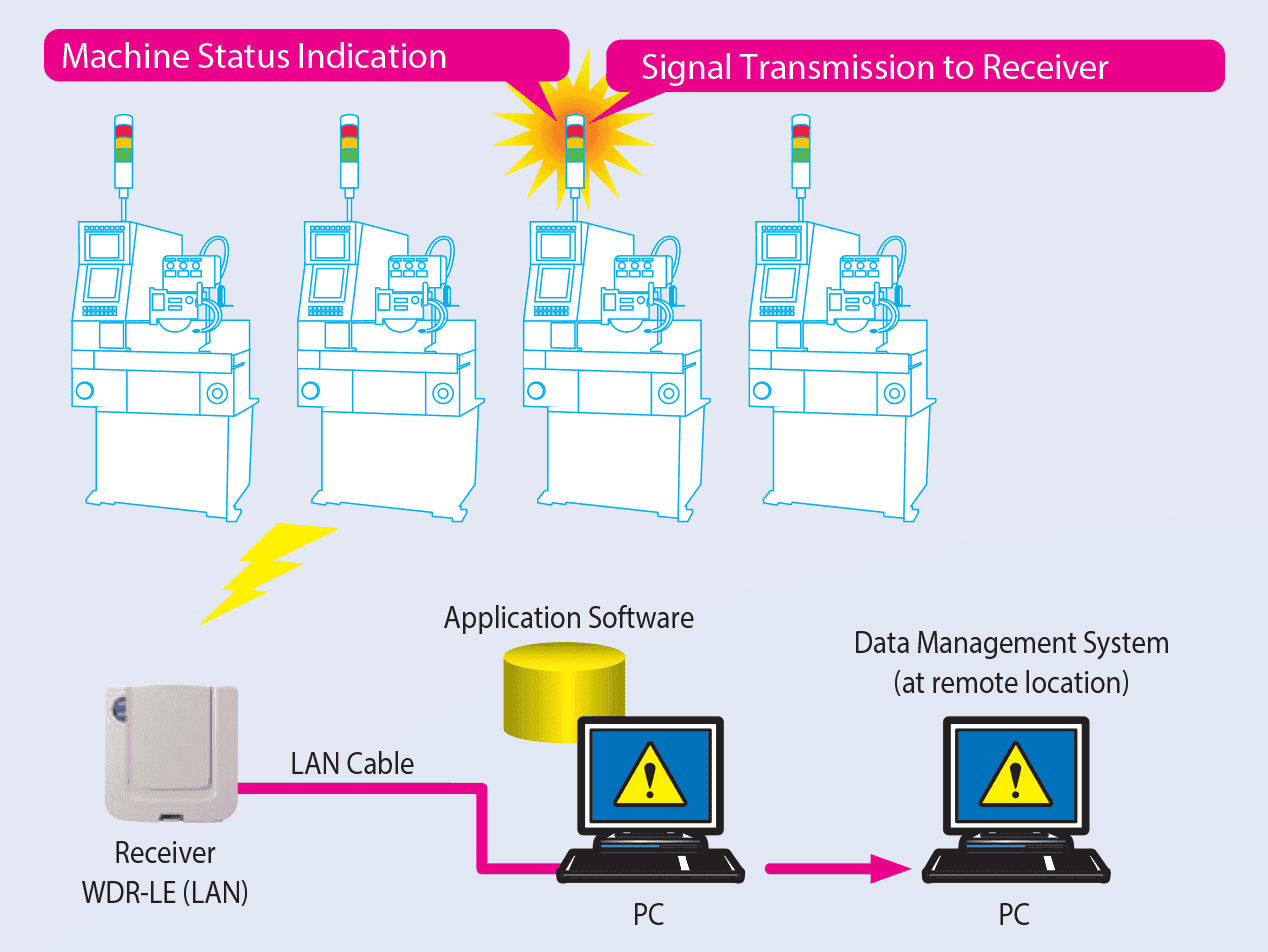

The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.




Model Specifications

CONFORMITY STANDARDS - FCC
- NCC
- NBCT
- SDPPI
- SRRC
DIMENSIONS - φ65×38.5mm
OPERATING VOLTAGES - Rated Voltage: DC24V (Non-polar)
- Operating Voltage Range: DC21.6V to DC26.4V
PROTOCOLS - Description: Signal Tower LE Transmitter
- Maximum Relay Connections: 5 Relays
- Protection Ratings: Conforms to LE Standards
FUNCTIONS - Operating Temperature Range: -10℃ to 60℃ (No Condensation )
- Operating Humidity Range: 85% RH or less(No Condensation)
- Storage Temperature Range:-20℃ to 70℃(No Freezing)
- Installation: Upright Position(Indoor Only)
BODY STYLE - Description: Signal Tower LE Transmitter
BODY COLOR - Body: Beige
