Wall-mount Bracket
SZK-004W
Wall-mount Bracket
Install the cable gland into the Wall-mount Bracket from the botom side.
(Required cable gland is not included.)

Product Features

■ Compatible Models:
LR6-WJ
LR7-WJ/WT


Specifications

ModelSZK-004W
Mounting LocationIndoor Only
Protection RatingIP65(with product attached)
MaterialPC
Mass(Tolerance±10%)0.07kg
RemarksThere are no contents of controlled substances exceeding the threshold for the RoHS Directive.

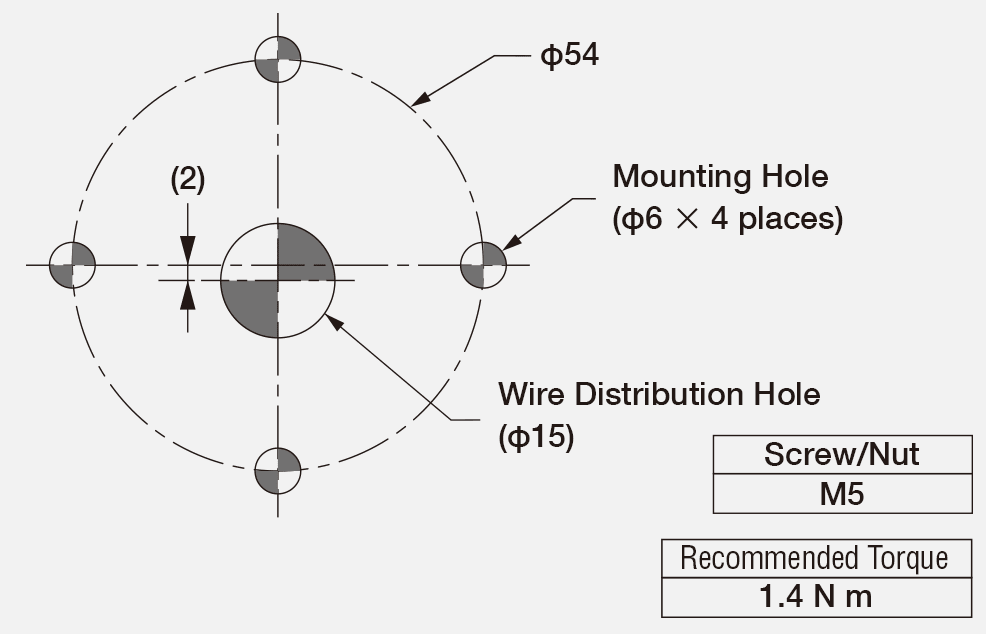

Conpatible M16×P1.5 cable gland
