PATLITE Audio Builder is a free software for creating playlists for PATLITE voice products. Easily prepare audio clips and text to speech to be transferred to your product with a USB connection.
Create playlists using text to speech
Supported Product
Download PATLITE Audio Builder from the Downloads section of the product page.
For earlier MP3 voice products, use PATLITE Playlist Editor 2.
3 Easy Steps
Step 1Prepare Audio Clips
Prepare the audio clips for your playlist from three sources: text to speech, your own MP3 and WAV files, and the alarms and melodies built into the product.

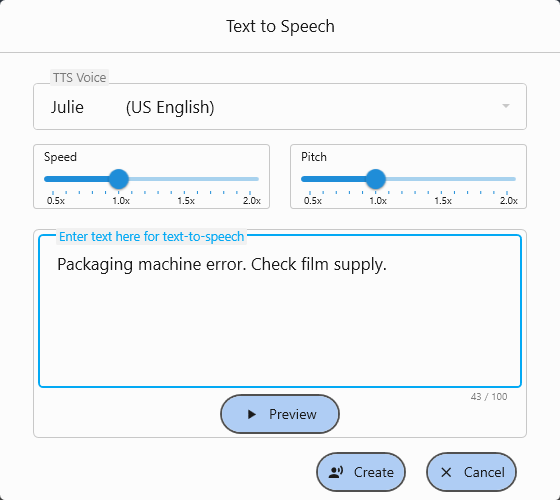

Text to Speech
Enter any text to create your own spoken audio clips.
10 Languages Supported
- Japanese
- U.S. English
- German
- French
- Italian
- Spanish
- Chinese
- Taiwanese Mandarin
- Korean
- Thai
Your Own MP3 and WAV Files
You can import your own MP3 and WAV files as audio clips. Prepare files that meet the specifications below. Files that do not meet these specifications will not play correctly.
| MPEG-1 Audio Layer III (MP3) | Waveform Audio File Format (WAV) |
|---|---|
|
|
Available Alarms and Melodies
In addition to the factory default sounds already on the device, choose from 35 alarms and 56 melodies available in the Audio Builder.

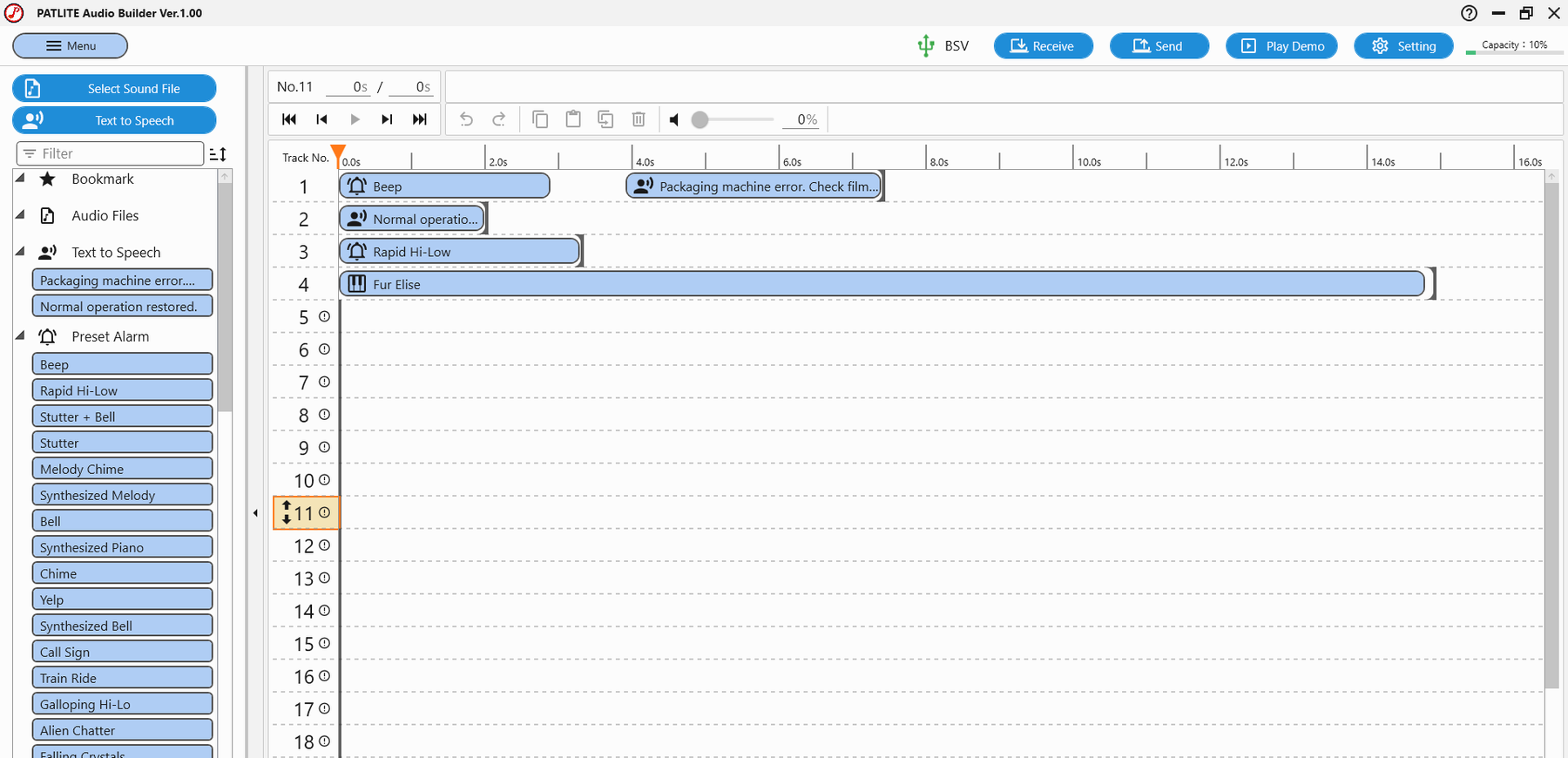

Step 2Create a Playlist
Use your audio clips to create the playlist data* that you will transfer to the product.
- A list that defines the order in which audio clips are played, saved in Audio Builder's own file format (ABPL file).
Select audio clips and assign them to tracks to create playlist data. In the playlist editing area, you can duplicate (repeat) clips and adjust settings such as volume and duration. For detailed instructions, see “Help” in PATLITE Audio Builder.
Supported OS: Windows 10 (22H2) / Windows 11 (22H2 or later). Both must be 64-bit versions.

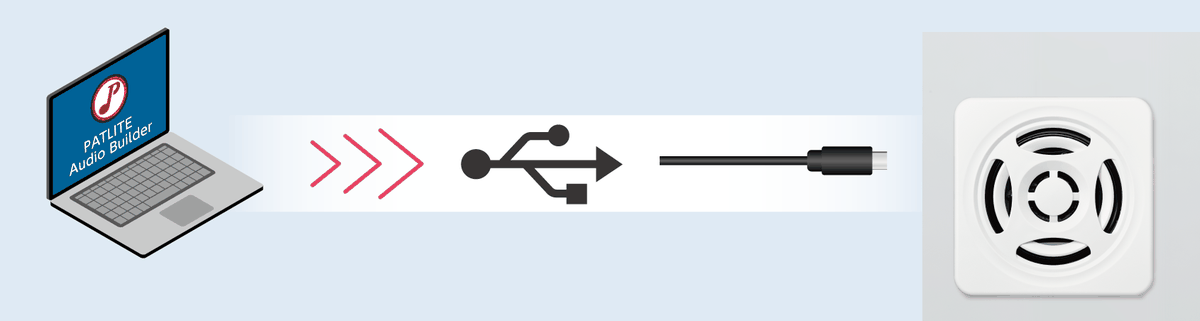

Step 3Transfer to the Product
Transfer the playlist created (ABPL file) to the product using a USB-C data cable. No dedicated programming device is required.
